WM - 1020

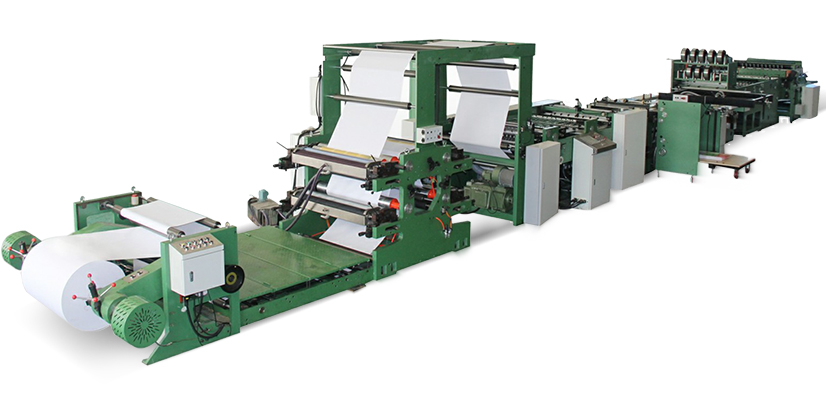

FULLY AUTOMATIC EXERCISE BOOK MACHINE
Introduction
This machine adopted high techniques such as microcomputer control, electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexo printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, exercise book, with a perfect combination of 12 processes:
- From reel one paper unwind
- High speed flexographic printing with -2/2
- Cross cutting
- Overlapping
- Collecting
- Stitching unit
- Folding
- Back pressing
- String cutting (cutting edge)

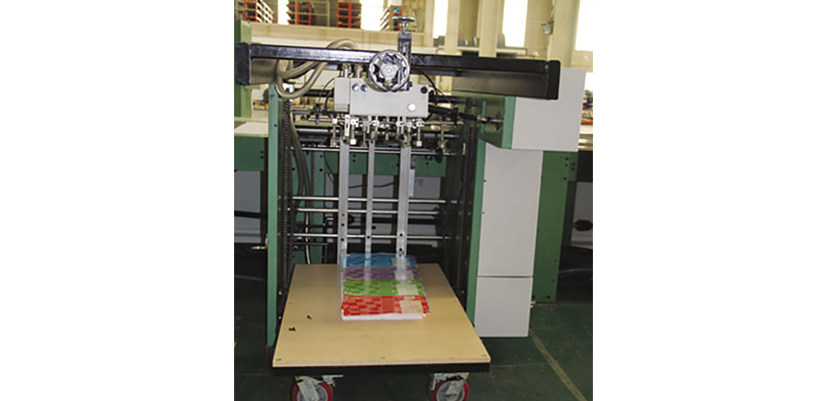

- Counting and delivering to the finished products of notebooks
Specification
Product Model Type : WM-1020
Web Width : 580-1020 mm
Max Printing Speed : 300 m/min
Repeat Range : 300-860 mm
Cutting Length : 300-860 mm
Counting & Collecting : 4-50 sheets
Max. Reel Paper Diameter : 1500 mm
Sheet Weight : 45-120 gr
Max. Output Frequency Triming : 45 times
Notebook Size Min : 125*125 mm
Notebook Size Max : 297*210 mm
Cover Paper Weight : 70-350 gr
Appendix Weight (sheet) : 40-150 gr
Sheet Stitching thickness : 10 mm
Total Power : 32 kw
Overal Dimensions : 21000x2500x2400 mm³
Machine Weight : 24 T
Web Width : 580-1020 mm
Max Printing Speed : 300 m/min
Repeat Range : 300-860 mm
Cutting Length : 300-860 mm
Counting & Collecting : 4-50 sheets
Max. Reel Paper Diameter : 1500 mm
Sheet Weight : 45-120 gr
Max. Output Frequency Triming : 45 times
Notebook Size Min : 125*125 mm
Notebook Size Max : 297*210 mm
Cover Paper Weight : 70-350 gr
Appendix Weight (sheet) : 40-150 gr
Sheet Stitching thickness : 10 mm
Total Power : 32 kw
Overal Dimensions : 21000x2500x2400 mm³
Machine Weight : 24 T
