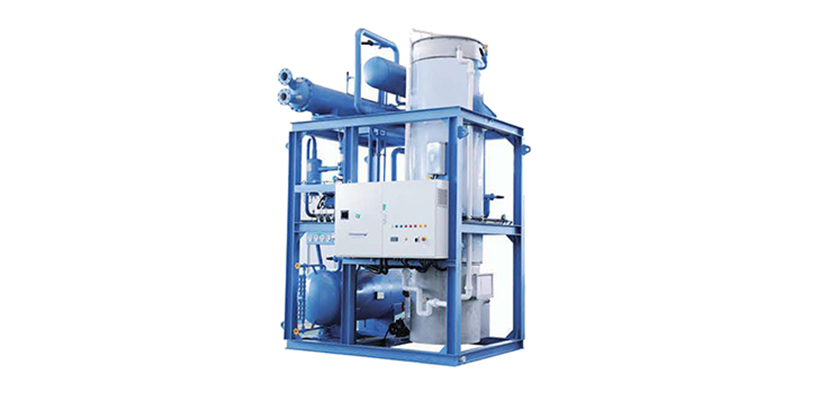

T400E
40T Ice Tube Making Machine
Introduction
The machine filters salts and impurities during their harvest cycle.
These impurities are discharged as waste at the end of a cycle, and fresh water fills the reservoir
to begin the process again. This produces a hard, powderless hollow tube ice that is transparent,
sanitary and environmentally friendly. The clear texture of tube ice means it is often referred to
as
“cocktail” or “party ice”.
Water is circulated from a reservoir over the inner surface of the stainless steel tube.
Ice is formed by a refrigerant being applied to the outside of the tube. When your desired thickness
is achieved,
a hot gas will be introduced, which releases the ice. This drops into a rotating blade, which cuts
your ice and
discharges into a storage container for use.
Features
- Preferrable ice shape over other shape
- High suitability distribution and storage
- Longer melting time than flake ice
- Outer dimension options: 22mm, 29mm, 36mm and 41mm
- Suitable for refrigerant R22 and R717
- Using Ammonia system refrigerant
Specification
| Water inlet temperature | Less than 20 °C |
|---|---|
| Ambient temperature | 35 °C |
| Evaporating Temperature | -15 °C |
| Ice production capacity | 40,000 kg / 24hours |
| Compressor power | 139.7 KW |
| Motor power consumption | 125 KW |
| Ice diameter | 29 mm |
| Refrigerant | R717 |
| Total running weight of ice maker | 11 T |
| Compressor dimension (mm) | 4810*2250*3074 |
| Evaporator dimension (mm) | 4810*2250*2343 |
