Hohner 52/8

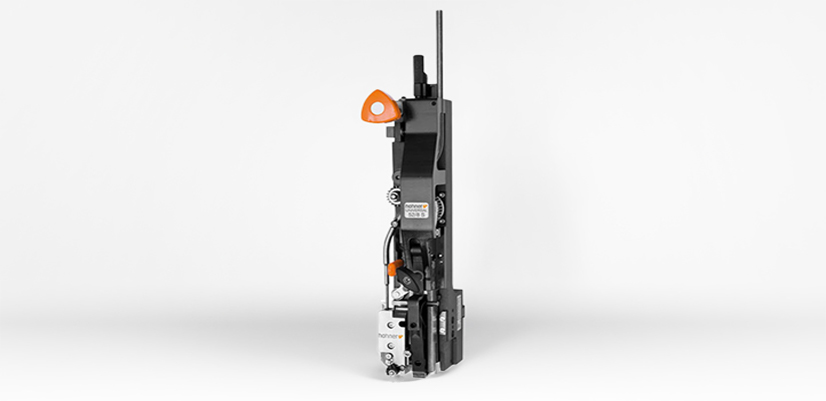

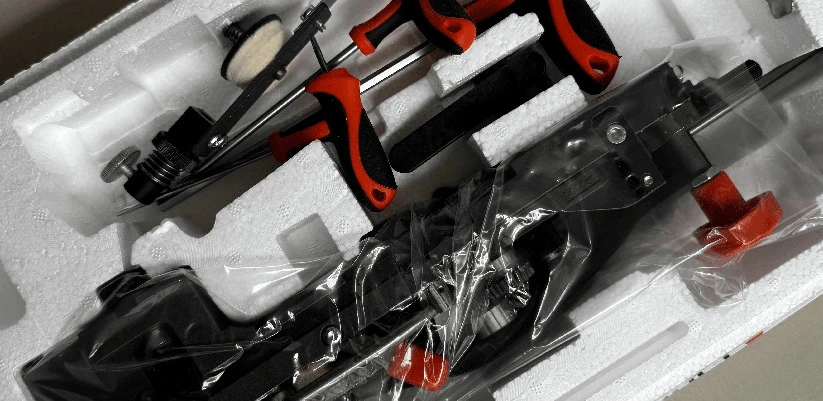

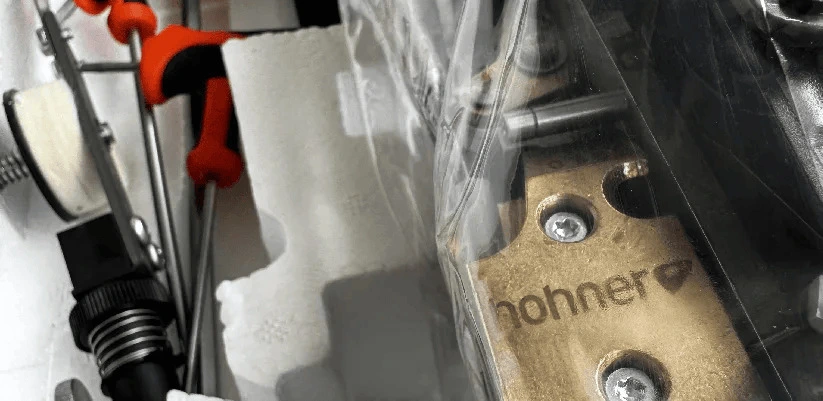

Stitching Head Hohner 52/8 Unit
Introduction
Hohner Stitching Head – Made in Germany for Precision and Durability. Equip your
manufacturing
machines with the original Hohner Stitching Head, renowned for its
exceptional German craftsmanship. Perfect for producing notebooks, brochures, magazines, leaflets, and
more, this stitching head ensures precision and longevity in every operation. To keep your production
seamless, we also offer premium-quality Stitching Wire as a consumable material, available at
competitive prices. Trust in Hohner's reliability and enhance your manufacturing efficiency today.
Features
- Suitable for high speeds of up to 20.000 stitches per hour.
- Extreme staple diversity.
- High flexibility due to the availability of optional exchange parts for various stitching and wire
types – saves costs.
- Central adjustment of wire length and stitching thicknesses in seconds.
- Now with aluminium case.
- In comparison with the Universal 52/8, operator friendly and toolless wire length adjustment.
- Removable, very narrow and sturdy centering device.
Specification
| Parameter |
Standard stitching |
| Crown width |
5 mm |
8 mm |
14 mm |
16 mm |
| Min.distance between staples |
|
|
52 – 65 mm |
|
| Max. stitching thickness |
|
|
8 mm |
|
| Round wire |
|
| → No. 21 – 23 (0,8 – 0,7 mm) |
|
|
✓ |
✓ |
| → No. 24 – 28 (0,6 – 0,4 mm) |
✓ |
✓ |
✓ |
✓ |
| → No. 26 – 30 (0,5 – 0,35 mm) |
|
|
✓ |
|
| Flat wire No. I – III
(0,70 x 0,35 – 0,75 x 0,55 mm) |
|
|
✓ |
|
| Parameter |
Loop stitching |
| Inner diameter loop |
6 mm |
7 mm |
8 mm |
| Min.distance between staples |
54 – 60 mm |
|
64 – 68 mm |
| Max. stitching thickness |
4 mm |
|
3 mm |
| Round wire |
|
| → No. 24 – 26 (0,6 – 0,5 mm) |
✓ |
✓ |
✓ |
| Parameter |
Ribbon wire stitching |
| Crown width |
10 mm |
14 mm |
| Ribbon wire 2,5 x 0,3 – 0,4 mm |
✓ |
✓ |
