G245S

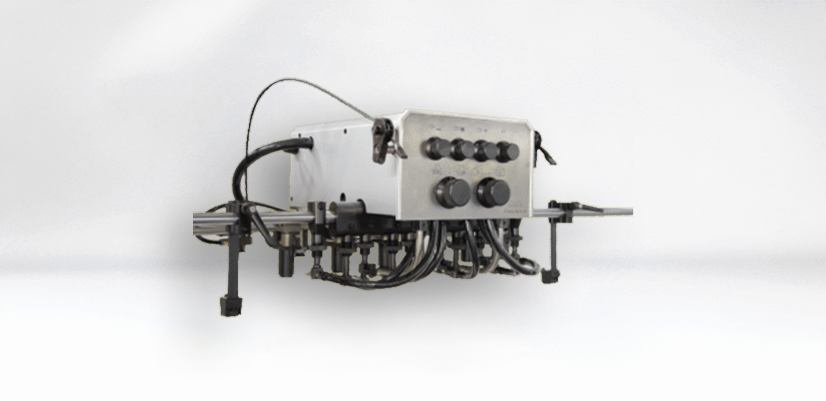

Feeder Head Unit
Please contact us for more info!
Introduction
It makes a higher speed and more stably feeding by conjugate cam design. The driven requires minimal power, which convenience for matching servo motor. The valve core is easy for cleaning and knocking down. It could be rectified for paper feeding under working pattern. Four slitting suction nozzle and five paper feeding suction nozzle keeps a stable operation while slitting and feeding.
Specification
| Top Sheet-feeding Speed | 18,000 P/h |
|---|---|
| Maximum Sheet Size (mm) | 1200x1200 |
| Minimum Sheet Size (mm) | 380x250 |
| Sheet Thickness (mm) | 0.06-4 |
| Sheet-Feeding Stroke (mm) | 58.5 |
| Number of Suction Nozzle | 4+5 |
