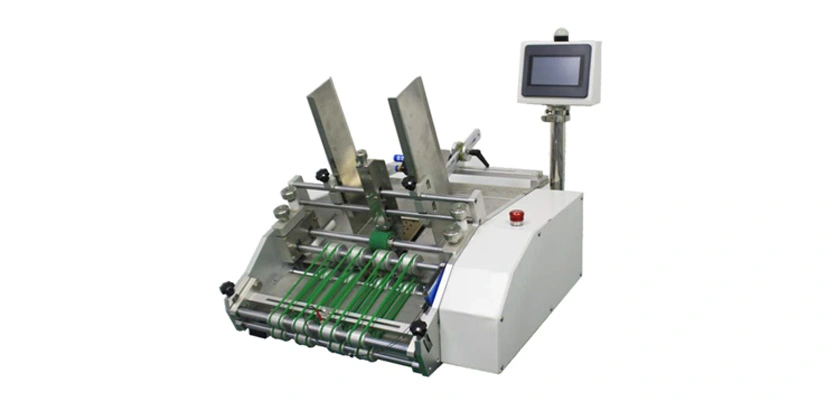

FC-300
AUTOMATIC FRICTION FEEDER
Please contact us for more info!
Introduction
The automatic friction feeder is widely used in the printing and packaging industry, it can be used as a separate card counting or a packaging line for various packaging equipment, such as: automatic bagging machine, pillow packaging machine, vertical packaging machine, automatic conveyor, automatic shrink-packaging machine. Etc.
FEATURES
- High speed up to 160 meter/ per min, with PLC control, servo motor driver system.
- Accurate counting, with imported fiber optic sensors.
- Easy operate, various data can be set and saved on the touch screen since centrally controlled.
- Auto Alarm, the machine will shut down if meet multi-card, leaky card, no card.
- Multi-function selection, single, multiple or continuous card issuance functions are available.
- Multi-function setting, can preset card length and quantity.
- Can add optional material shortage early warning device.
Specification
| Max. Speed | 10 – 160 M/min (Speed Depends on the Product) |
|---|---|
| Thickness | 0.1 – 10mm (Thickness Depends on the Product) |
| Card Length | 65 – 300 mm |
| Card Width | 65 – 300 mm |
| Control System | Servo Motor PLC Control |
| Voltage | 220V |
| Power | 450W |
| Net Weight | 25KG |
| Machine Dimensions | (L) 550 × (W) 500 × (H) 500 mm |
| It can be customized according to requirements | |
